ProPierce

Increasing the piercing capacity by up to 1 1/4 inches

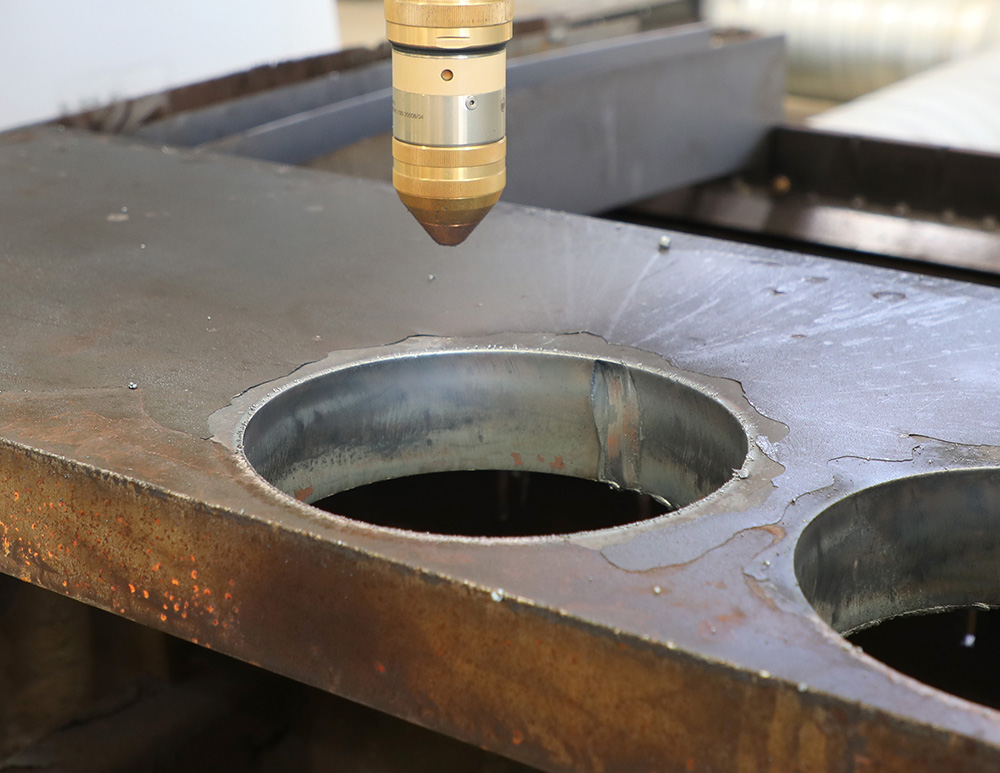

The patent pending process “ProPierce” increases the previous maximum piercing capacity by 3/8 inches in mild steel and up to 1 1/4 inches in stainless steel and aluminium.

The new technological process offers cutting of inner contours in thick-metal without changing applications. Customers reduce material costs while using piercing instead of edge start.
The technology “ProPierce” is available exclusively for Q-Series and doesn’t need additional equipment or consumables.







Overview of maximum piercing capacity

  Q 1500 (plus)
without ProPierce		 Q 1500 (plus)
with ProPierce		 Q 3000 (plus)
without ProPierce		 Q 3000 (plus)
with ProPierce
Mild steel 1 1/4 in
30 mm		 1 1/2 in
40 mm		 2 in
50 mm		 2 1/4 in
60 mm
Stainless steel* 1 1/4 in
30 mm		 2 in
50 mm		 2 in
50 mm		 2 1/4 in
60 mm
Aluminum* 1 1/2 in
40 mm		 2 in
50 mm		 2 in
50 mm		 3 in
80 mm

* Only with plasma flow control Q-Gas
