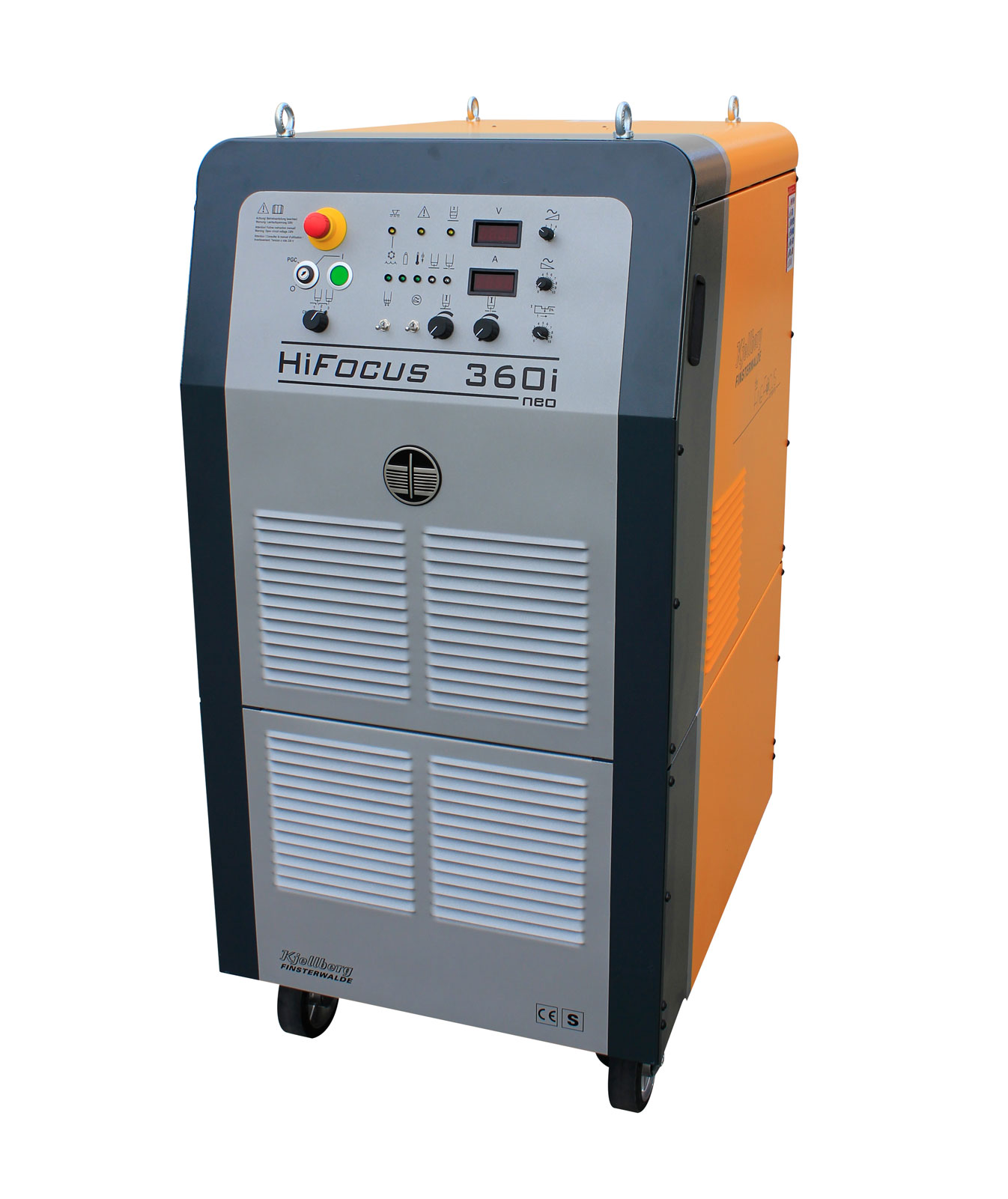

HiFocus 360i neo

The HiFocus 360i neo is one of the most flexible and most powerful high-precision plasma cutting units. Its wide cutting range from 0.018 to 3 inch means a considerably higher flexibility. The inverter technology allows the highest marking quality and functionionality. The HiFocus 360i neo is ideally suited for steel service centers, steel producers and distributors because it can be combined with 2D or 3D CNC-controlled guiding systems like gas cutting machines, robots and pipe cutting machines. With HiFocus neo the user benefits, compared to the competitors, from higher speed when cutting and marking electrically conductive materials, ensuring at the same time excellent quality and low process costs. Thanks to the optimised technology, the consumables are handled gently and the plasma cutting process is more efficient. The HiFocus 360i neo is also available for underwater cutting. The HiFocus 360i neo is available as standard with the the Contour Cut technology for cutting fine inner and outer contours and small holes in mild steel. As a further development of the Contour Cut technology the Silent Cut technology reduces the sound pressure level by up to 15 dB(A) during cutting with currents between 60 and 160 A.

Contact person
Plasma cutting technique

Our team will be pleased to advise you

phone +1 469.770.9799
email

Send e-mail now

HiFocus 360i neo

The HiFocus 360i neo is one of the most flexible and most powerful high-precision plasma cutting units. Its wide cutting range from 0.018 to 3 inch means a considerably higher flexibility. The inverter technology allows the highest marking quality and functionionality. The HiFocus 360i neo is ideally suited for steel service centers, steel producers and distributors because it can be combined with 2D or 3D CNC-controlled guiding systems like gas cutting machines, robots and pipe cutting machines. With HiFocus neo the user benefits, compared to the competitors, from higher speed when cutting and marking electrically conductive materials, ensuring at the same time excellent quality and low process costs. Thanks to the optimised technology, the consumables are handled gently and the plasma cutting process is more efficient. The HiFocus 360i neo is also available for underwater cutting. The HiFocus 360i neo is available as standard with the the Contour Cut technology for cutting fine inner and outer contours and small holes in mild steel. As a further development of the Contour Cut technology the Silent Cut technology reduces the sound pressure level by up to 15 dB(A) during cutting with currents between 60 and 160 A.

Inquire Now
Power source HiFocus 360i neo
Mains voltage* 3 x 480 V, 60 Hz
Cutting current (at 100 % duty cycle) 360 A
Marking current 5 - 50 A
Cutting range 0.018 to 3 in
Piercing up to 2 in
Dimensions (L x W x H) 40.55 x 26.77 x 57.09 in
1030 x 680 x 1450 mm
Mass 1140 lb
517 kg
Plasma torch PerCut series

*Other voltages and frequencies available upon request.

Contour Cut
Exact contours in mild steel with a diameter to material thickness ratio of 1:1 (Diameter:material thickness) | more...

Contour Cut Speed
Contour cutting in mild steel with similar quality and up to 50% higher speed | more...

Silent Cut
Cutting of mild steel with reduced sound pressure level | more...

HiFinox
Dross-free cutting of stainless steel in the range between 0.036 and 1/4 inch | more...

Ar/H2 Mix
Excellent cutting results thanks to active mixing of single gases for stainless steel and aluminum starting from 1/4 inch | more...

Marking, notching, punching
Individual labeling of the material

HotWire (optionally)
Cutting of interrupted structures or nonconductive materials | more...
