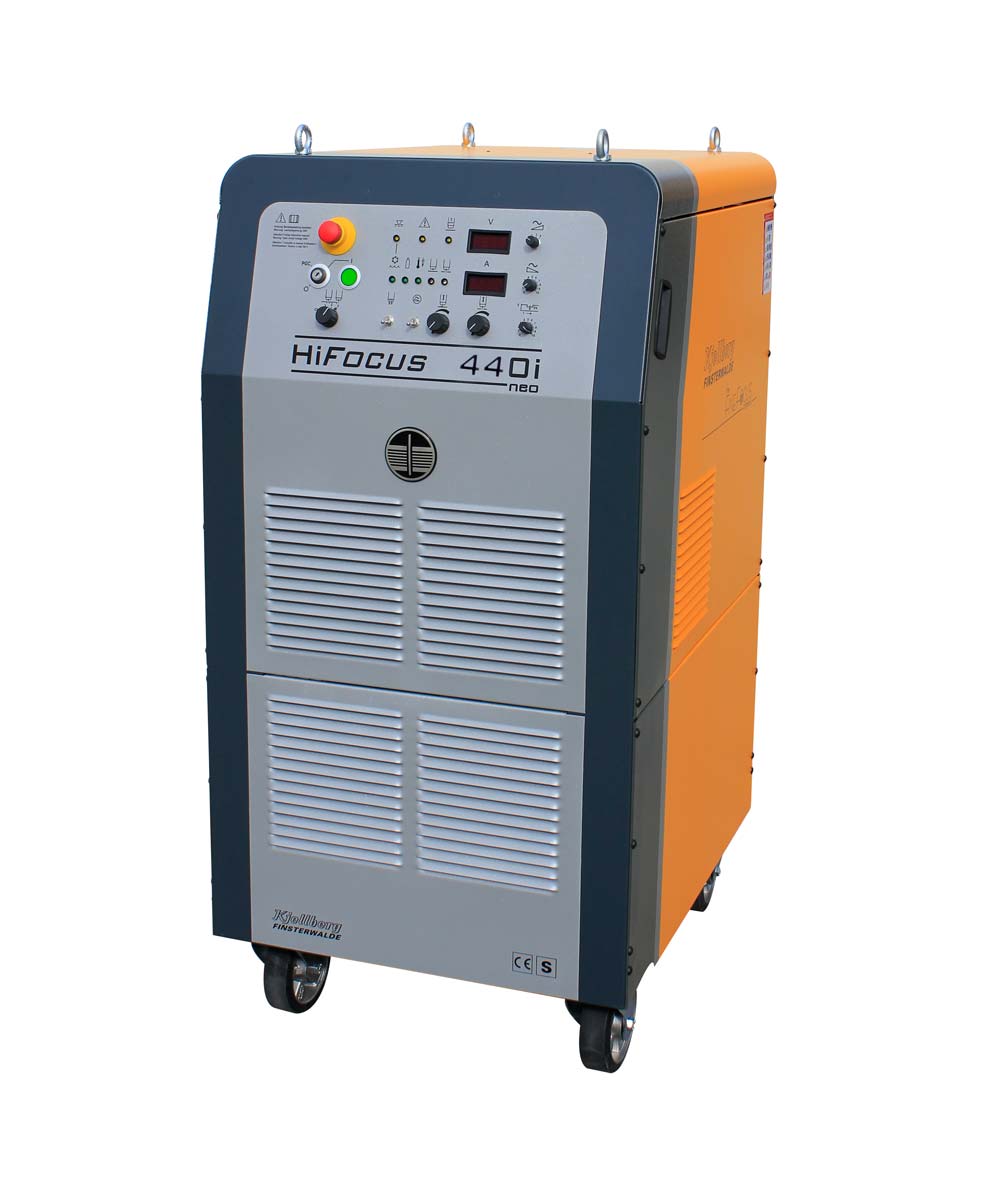

Power source | HiFocus 440i neo |
Mains voltage* | 3 x 480 V, 60 Hz |
Cutting current (at 100 % duty cycle) | 440 A |
Marking current | 5 - 50 A |
Cutting range | mild steel: 0.018 - 5 in stainless steel: 0.036 - 5 in |
Piercing | up to 2 inch |
Dimensions (L x W x H) | 40.55 x 26.77 x 57.09 in 1030 x 680 x 1450 mm |
Mass | 1299 lb 589 kg |
Plasma torch | PerCut series |
*Other voltages and frequencies available upon request.
Contour Cut
Exact contours in mild steel with a diameter to material thickness ratio of 1:1 (Diameter:material thickness) | more...
Contour Cut Speed
Contour cutting in mild steel with similar quality and up to 50% higher speed | more...
Silent Cut
Cutting of mild steel with reduced sound pressure level | more...
HiFinox
Dross-free cutting of stainless steel in the range between 0.036 and 1/4 inch | more...
Ar/H2 Mix
Excellent cutting results thanks to active mixing of single gases for stainless steel and aluminum starting from 1/4 inch | more...
Marking, notching, punching
Individual labeling of the material
HotWire (optionally)
Cutting of interrupted structures or nonconductive materials | more...
