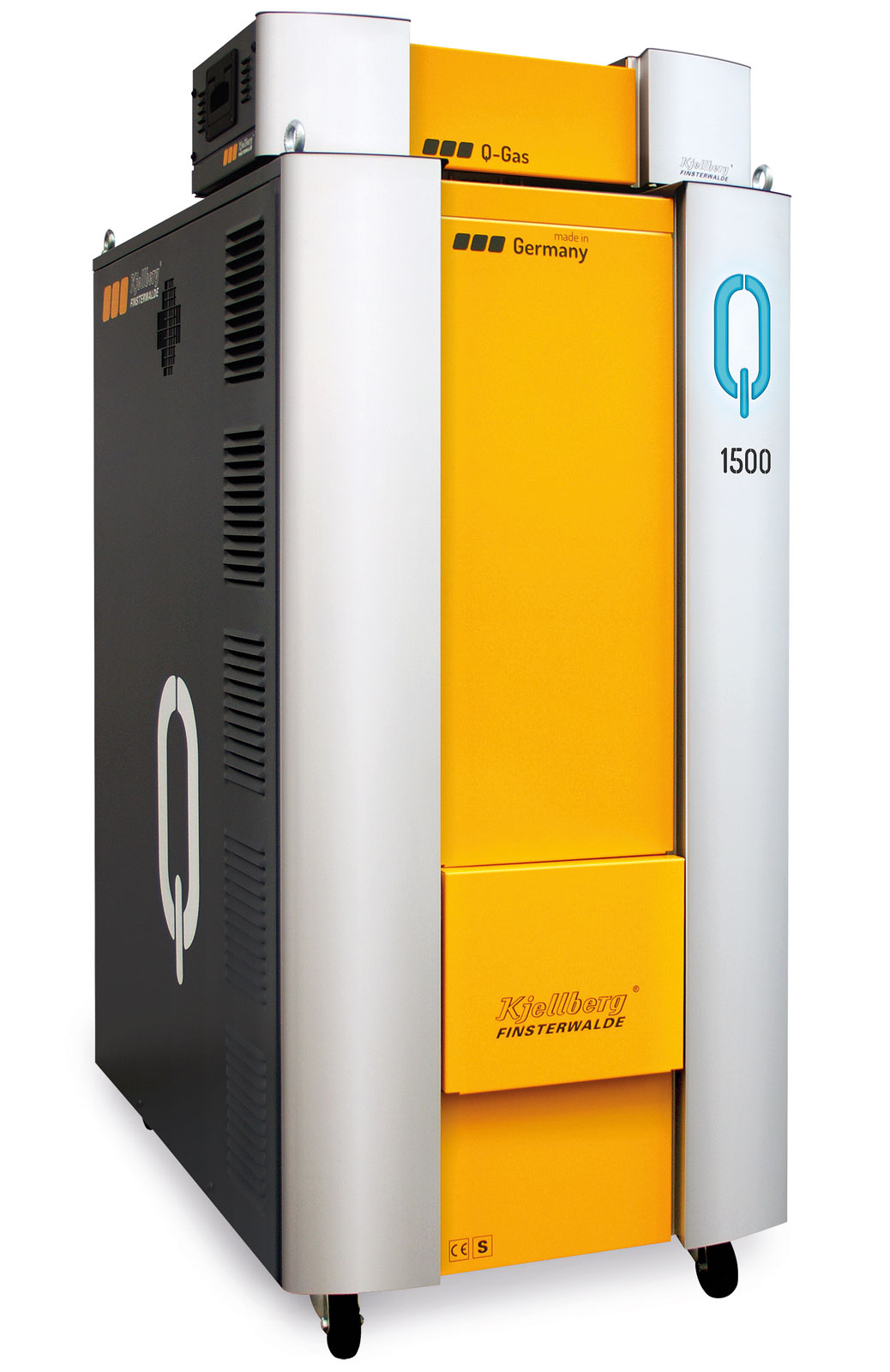

Q 1500

Being the smallest model of the new Q series, the Q 1500 achieves precise plasma cuts at the highest level for material thicknesses of up to 60 mm and with a maximum cutting current of 150 A. Thanks to the modular design, the machine performance of the Q 1500 plus can later be upgraded and, thus, adapted to the customer's requirements. New components and especially the operator interface Q-Desk meet the complex requirements of a digitalised production in the age of Industry 4.0. The specially developed browser-based operator interface Q-Desk provides real-time process data and information of all plant components on any standard device and location-independent. The user benefits from extensive information enabling him to plan and execute a variety of maintenance tasks as guided by the system. This generation of plasma cutting systems is the result of intensive research and development work by Kjellberg and a landmark in the 60 years of Kjellberg's plasma history. The new digital plasma series Q sets pioneering standards regarding quality and connectivity.

Contact person
Plasma cutting technique

Our team will be pleased to advise you

phone +1 469.770.9799
email

Send e-mail now

Q 1500

Being the smallest model of the new Q series, the Q 1500 achieves precise plasma cuts at the highest level for material thicknesses of up to 60 mm and with a maximum cutting current of 150 A. Thanks to the modular design, the machine performance of the Q 1500 plus can later be upgraded and, thus, adapted to the customer's requirements. New components and especially the operator interface Q-Desk meet the complex requirements of a digitalised production in the age of Industry 4.0. The specially developed browser-based operator interface Q-Desk provides real-time process data and information of all plant components on any standard device and location-independent. The user benefits from extensive information enabling him to plan and execute a variety of maintenance tasks as guided by the system. This generation of plasma cutting systems is the result of intensive research and development work by Kjellberg and a landmark in the 60 years of Kjellberg's plasma history. The new digital plasma series Q sets pioneering standards regarding quality and connectivity.

Inquire Now
Power source Q 1500 / Q 1500 plus
Cutting current at 100% d.c.1 20 - 150 A
Marking current at 100% d.c.1 5 - 60 A

Q-Gas O2

Q-Gas
Cutting ranges Mild steel
Recommended
Maximum
Piercing2

0.018 - 1 1/2 in
2 1/4 in
1 1/4 in

0.018 - 1 1/2 in
2 1/4 in
1 1/4 in
Cutting ranges Stainless steel
Maximum
Piercing2

1 1/2 in
1 in

2 1/4 in
1 1/4 in
Cutting ranges Aluminum
Maximum
Piercing2

1 1/2 in
1 in

2 1/4 in
1 1/2 in

Dimensions (LxWxH)

45.28 x 27.36 x 57.48 in
1.150 x 695 x 1.460 mm
Mass 239/280 kg
Fuse, slow 63 A
Max. Connected load 35 kVA
Protection class IP 21S
Mains voltages 380 - 400 V, 50/60 Hz
415 - 440 V, 50/60 Hz
440 - 480 V, 50/60 Hz

1 Ambient temperature 40 °C
2 Extension of piercing capacity with ProPierce technology in combination with Q-Gas.

Q-Hole
Precise holes in mild steel with a diameter to material thickness ratio of 0.75:1 (Diameter:material thickness)

Q-Mark/Q-Notch
Excellent marking and notching quality

Contour Cut
Exact contours in mild steel with a diameter to material thickness ratio of 1:1 (Diameter:material thickness) | more...

Contour Cut Speed
Contour cutting in mild steel with similar quality and up to 50% higher speed | more...

Silent Cut
Cutting of mild steel with reduced sound pressure level | more...

HiFinox
Dross-free cutting of stainless steel in the range between 0.036 and 1/4 inch | more...

Ar/H2 Mix
Excellent cutting results thanks to active mixing of single gases for stainless steel and aluminum starting from 1/4 inch | more...

ProPierce
Technology to enhance piercing capacity | more...
