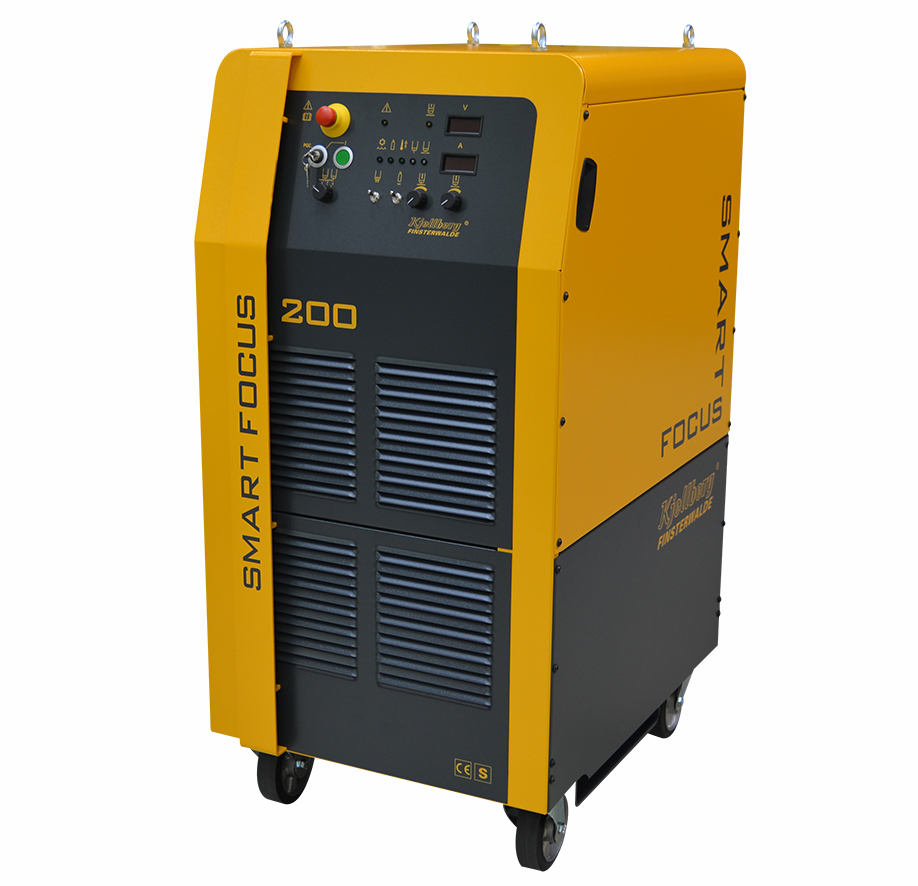

Smart Focus 200

With just a few settings the plasma cutting units of the Smart Focus series achieve excellent results in the cutting range from 0.036 to 2 1/4 inch. Even under challenging conditions highest cutting quality and speed are realised. In such cases, we use our well-proven cutting technologies, e.g. Contour Cut for cutting mild steel. The optimised gas control units and torches protect the consumables, reduce the gas consumption and the costs per cutting foot. As a further development of the Contour Cut technology the Silent Cut technology reduces the sound pressure level by up to 15 dB(A) during cutting with currents between 60 and 160 A.

Contact person
Plasma cutting technique

Our team will be pleased to advise you

phone +1 469.770.9799
email

Send e-mail now

Smart Focus 200

With just a few settings the plasma cutting units of the Smart Focus series achieve excellent results in the cutting range from 0.036 to 2 1/4 inch. Even under challenging conditions highest cutting quality and speed are realised. In such cases, we use our well-proven cutting technologies, e.g. Contour Cut for cutting mild steel. The optimised gas control units and torches protect the consumables, reduce the gas consumption and the costs per cutting foot. As a further development of the Contour Cut technology the Silent Cut technology reduces the sound pressure level by up to 15 dB(A) during cutting with currents between 60 and 160 A.

Inquire Now
Power source Smart Focus 200
Mains voltage* 3 x 480 V, 60 Hz
Cutting current 35 - 200 A
Marking current 10 - 50 A
Cutting range
Maximum
Recommended

2 1/4 in
0.036 - 1 1/2 in
Piercing 1 1/4 in
Plasma gases O2, Ar / H2, N2, Air
Piercing Ar, N2
Dimensions (L x W x H) 40.55 x 26.77 x 57.09 in
1030 x 680 x 1450 mm
Mass 855 lb
388 kg
Plasma machine torch PerCut 4000
Quick change head PerCut 4000

*Other voltages and frequencies available upon request.
