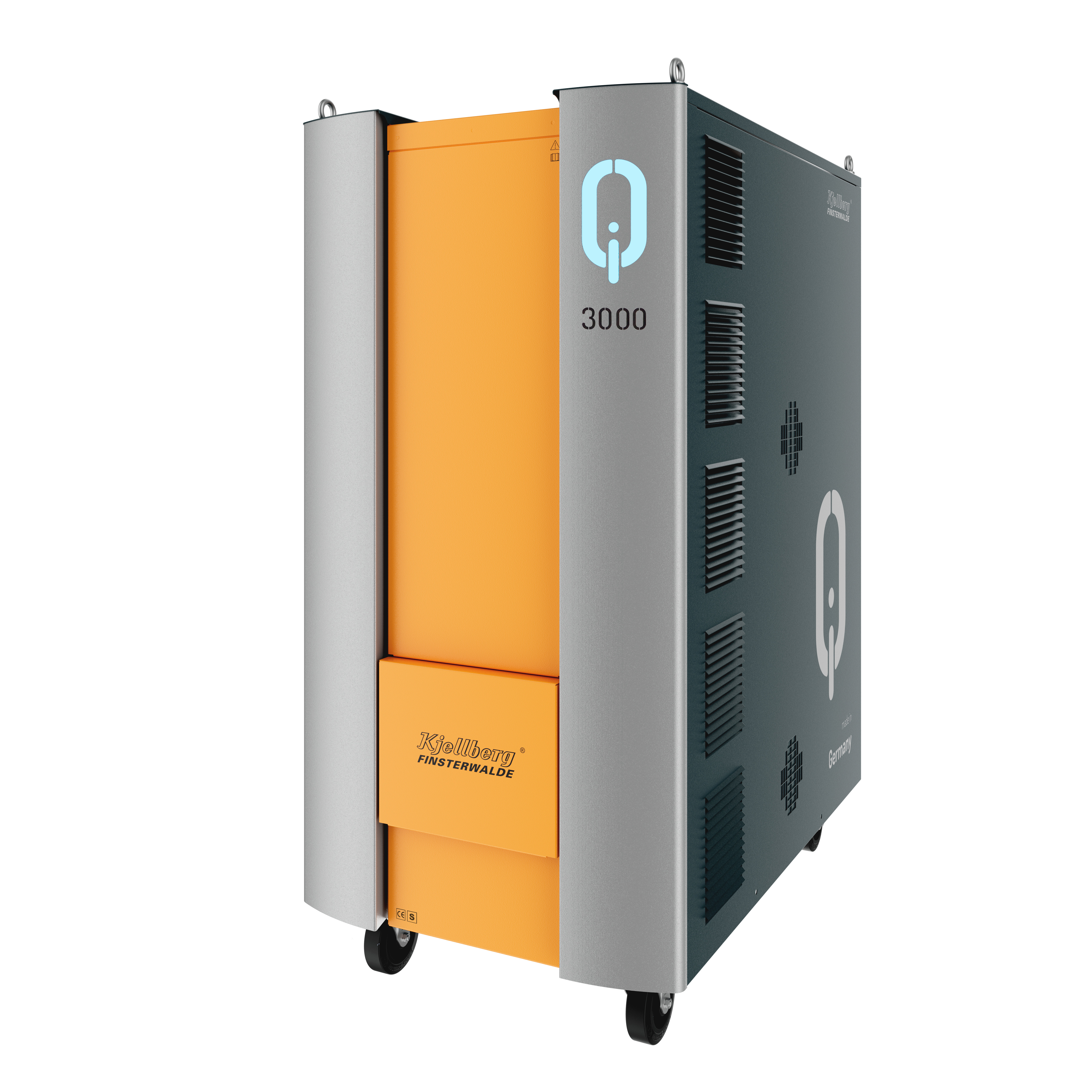

iQ 3000

The iQ 3000 from Kjellberg Finsterwalde combines flexible, automated plasma cutting processes with the ability to meet changing requirements.

Changing workpieces, different material thicknesses, and varying requirements demand stable process conditions. The iQ 3000 provides the flexibility needed and delivers repeatable cutting results with consistently high cut quality.

Q-Desk provides real-time access to relevant process and system data. This improves operational visibility and supports targeted monitoring and optimization of cutting processes.

With TorchGuardian as standard, the iQ-Series offers intelligent torch protection features for greater process reliability in plasma cutting. The integrated technologies monitor consumable condition, display relevant status information, and enable efficient consumable use and scheduled consumable changes.

The Q-Torch Auto Change System provides the foundation for automation within the plasma cutting process. Automatic torch changes reduce manual intervention and support continuous production.

Typical applications include automated cutting systems in machinery manufacturing, structural steel fabrication, and series production. With a cutting current of up to 300 A, the iQ 3000 cuts mild steel up to 3 1/8 in (80 mm) thick.

Contact person
Plasma cutting

Our team will be pleased to advise you

phone +1 469.770.9799
email

Send e-mail now

iQ 3000

The iQ 3000 from Kjellberg Finsterwalde combines flexible, automated plasma cutting processes with the ability to meet changing requirements.

Changing workpieces, different material thicknesses, and varying requirements demand stable process conditions. The iQ 3000 provides the flexibility needed and delivers repeatable cutting results with consistently high cut quality.

Q-Desk provides real-time access to relevant process and system data. This improves operational visibility and supports targeted monitoring and optimization of cutting processes.

With TorchGuardian as standard, the iQ-Series offers intelligent torch protection features for greater process reliability in plasma cutting. The integrated technologies monitor consumable condition, display relevant status information, and enable efficient consumable use and scheduled consumable changes.

The Q-Torch Auto Change System provides the foundation for automation within the plasma cutting process. Automatic torch changes reduce manual intervention and support continuous production.

Typical applications include automated cutting systems in machinery manufacturing, structural steel fabrication, and series production. With a cutting current of up to 300 A, the iQ 3000 cuts mild steel up to 3 1/8 in (80 mm) thick.

Inquire Now
Power source iQ 3000 / iQ 3000 plus
Cutting current at 100% d.c.1 20 - 300 A
Marking current at 100% d.c.1 5 - 60 A


iQ-Gas O2

iQ-Gas
Cutting ranges Mild steel
Recommended
Maximum
Piercing
0.018 - 2 3/8 in
3 1/8 in
2 in
0.018 - 2 3/8 in
3 1/8 in
2 in
Cutting ranges Stainless steel
Maximum
Piercing
2 3/8 in
1 1/4 in
3 1/8 in
2 in
Cutting ranges Aluminum
Maximum
Piercing
2 3/8 in
1 5/8 in
3 1/8 in
2 in

Dimensions (LxWxH)
45.28 x 27.36 x 59.45 in
Weight 657/701 lbs
Fuse, slow 125 A
Max. Connected load 72 kVA
Protection class IP 21S
Mains voltages 380 - 400 V, 50/60 Hz
415 - 440 V, 50/60 Hz
440 - 480 V, 50/60 Hz

1 Ambient temperature 40 °C

Process Monitoring & Automation

Q-Desk
Real-time process and system data for transparent monitoring and targeted process optimization.

TorchGuardian
Intelligent functions for monitoring and protecting the plasma torch and consumables. Condition monitoring supports
       efficient consumable use and planned consumable changes.

Q-Torch Auto Change System
Automatic changing of torch heads equipped with different consumables for various cutting tasks – reducing manual
       intervention and supporting continuous production. | more...

Cutting & Cut Quality

Contour Cut
Precise contours and holes in mild steel with a hole diameter-to-material thickness ratio of 1:1 | more...

Contour Cut Speed
Contour cutting in mild steel up to 50% faster with comparable cut quality | more...

Silent Cut
Cutting mild steel with reduced sound pressure levels | more...

HiFinox
Plasma cutting of stainless steel and aluminum from 1 to 6 mm with reduced dross | more...

Ar/H2 Mix
Excellent cutting results through active mixing of individual gases for stainless steel and aluminum from 6 mm | more...

Special Cutting Processes & Marking

Q-Hole
Precise holes in mild steel with a hole diameter-to-material thickness ratio of 0.75:1

ProPierce
Technology for piercing thicker materials | more...

Q-Bevel
Consistently high-quality bevel cutting for material thicknesses from 1/4 to 2 in

Q-Mark/Q-Notch
Excellent marking and notching quality
